sold out - 3/20/2012 - PICCPO kit

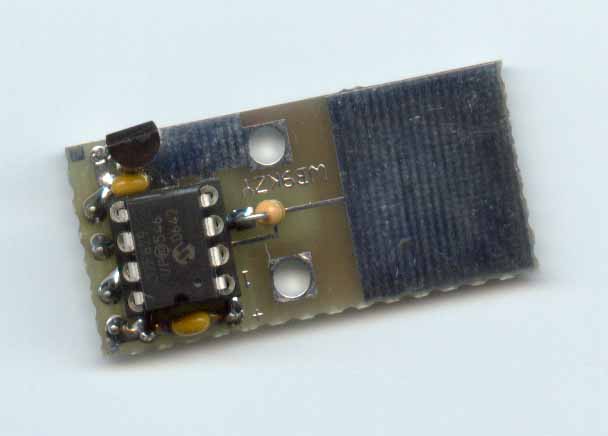

[PICCPO circuit board picture - click for larger view of board ]

  • Code Practice Oscillator, PIC based
  • touch switch "key" built in
  • add a piezo speaker and a 3 cell battery to complete the kit
  • can also be used as a straight key
  • two mounted vertically, back to back, can be used as a keyer paddle
  • low power, uses less than 10 uA when sleeping (5 volt supply)
  • kit includes circuit board & components shown
  • Size is .7 x 1.5 inches


    • Download (right click, save target as) the manual , schematic , hookup diagram , paddle , in Adobe Acrobat (.pdf) format.
