NEW (3/24/2009) - Morse Watch / Timer kit

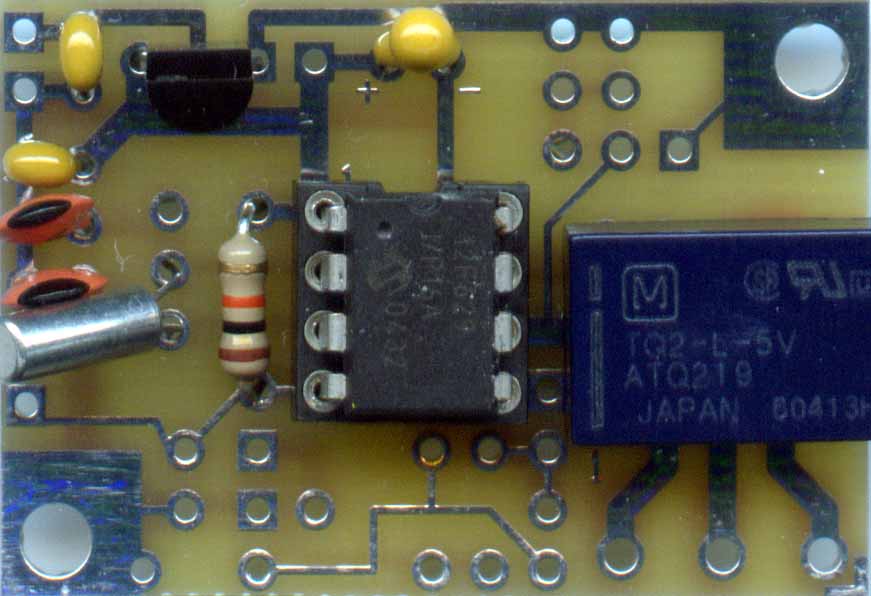

[Morse Watch / Timer circuit board picture - click for larger view of board ]

  • Plays the time in Morse code
  • 10 minute timer / sleep timer
  • up to 16 alarms
  • latching relay output switches AC / DC loads
  • Morse stop watch
  • on the second tick
  • selectable speeds: 12, 15, 18, 20, 25 or 30 WPM
  • low power consumption, 8 uA at 5 volts
  • includes 5V regulator, operates from 6 to 13.8 volts
  • kit includes circuit board & components shown
  • Size is 1.25 x 1.5 inches
  • Ask to have your alarms (up to 16) pre-programmed as the default
  • Price is $13.00 plus $3.00 shipping/handling in USA
  • add a Murata piezo speaker for $2 more
  • Add $4 to above price for Worldwide (DX) orders
  • Note that this kit could use some more work, for example: time accuracy could be better, but I think it's a useful kit now


    • Download (right click, save target as) the manual , schematic , hookup diagram in Adobe Acrobat (.pdf) format. Also, download the 10 minute ID timer , 25 / 55 timer and Pill timer application notes in Adobe Acrobat (.pdf) format.

    Print out a Kit order form to figure your order manually
    OR try our: javascript order form to let your browser do the math
    OR press one of the buttons below to pay with a credit card by using Paypal:


    Pay me securely with your credit card through PayPal!
    Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!
    Visa MasterCard Discover American Express
    press the Add to cart button at the left to put a $12.50 Morse Watch/timer kit in your Paypal shopping cart
    press the Add to cart button at the left to put an $14.50 Morse Watch/timer kit with Murata piezo in your Paypal shopping cart
    outside the USA ?, press Add to cart button (at left) 1 time per order to add $4 DX shipping to $3 US shipping = $7 total
    press the view cart button at the left to Check out or see what is now in your Paypal shopping cart
