PK-Basic keyer kit

3/6/2010 - get a Norcal keyer chip in place of the kit PK-Basic chip at no extra cost

The PK-Basic is a Morse code iambic keyer which offers:

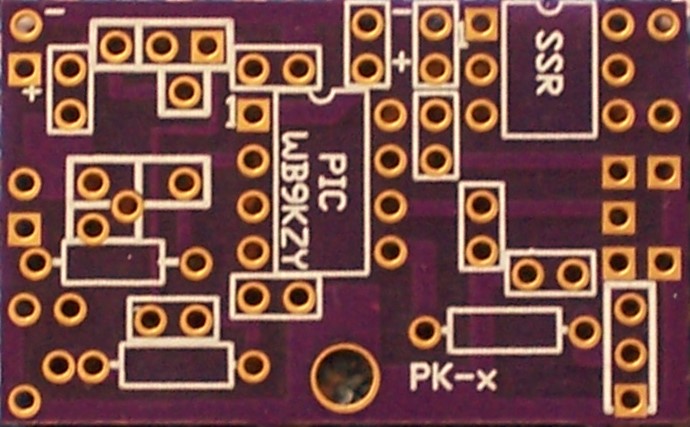

[PK-Basic board picture]

  • pot or paddle speed control, 5 to 39 WPM
  • 16 character memory + 13 character callsign memory
  • chip alone works well in the now discontinuedIsland Keyboard
  • pin compatible with Tick or K8 keyer chips
  • kit easily upgradable to the PK-4
  • mode A or B Iambic keying
  • beacon mode
  • one touch CQ using callsign memory
  • machine pin socket for keyer chip included with kit
  • speed readout - sends code speed via the sidetone
  • low standby power (about 1 ua at 5 V)
  • low active power (1.5 ma max. at 5 V)
  • small size (1 by 1.5 inches)
  • Kit price (no printed manual) is $13.00 + $3.00 USA shipping and handling
  • add a Murata piezo speaker for $2 more
  • PK-Basic chip - price (no printed manual) is $3.50 + $3.00 USA S/H
  • DX (outside the USA) add $4.00 to USA prices

    Printed manuals available for an additional charge or
    download the manual and schematic and print your own!

    Note that multiple purchases of the PK-Basic chip without the manual, will be sent in a single anti-static bag.

    Pay me securely with your credit card through PayPal!
    Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!
    Visa MasterCard Discover American Express
    press the Add to cart button at the left to put a PK-Basic keyer chip in your Paypal shopping cart
    press the Add to cart button at the left to put a PK-Basic keyer kit in your Paypal shopping cart
    press the Add to cart button at the left to put a PK-Basic keyer kit w/Norcal chip in your Paypal shopping cart
    press the Add to cart button at the left to put a PK-Basic keyer kit w/Pacificon chip in your Paypal shopping cart
    press the Add to cart button at the left to put a PK-Basic keyer kit w/piezo in your Paypal shopping cart
    press the Add to cart button at the left to put a PK-Basic keyer kit w/piezo & Norcal chip in your Paypal shopping cart
    press the Add to cart button at the left to put a PK-Basic keyer kit w/piezo & Pacificon chip in your Paypal shopping cart
    outside the USA ?, press Add to cart button (at left) 1 time per order to add $4 DX shipping to $3 US shipping = $7 total
    press the view cart button at the left to Check out or see what is now in your Paypal shopping cart

    For larger quantity purchases, manual pricing or to combine with other items, just send an email to wb9kzy at wb9kzy dot com with the items you want and we'll email you a Paypal invoice.


    Print out a Kit order form form or try our: javascript order form

    Downloadable files for the PK-Basic

    The Acrobat files of complex diagrams (like the schematic) may not view well on your computer screen - suggestion: use the magnifier to zoom in for better detail or print out the file.

    pkbasic.pdf (56k) - an Acrobat file of the PK-Basic schematic

    pkbasic3.pdf (27k) - an Acrobat file of the PK-Basic manual

    modeab.pdf (8k) - an Acrobat file explaning the differences between Iambic mode A and B

    pkbhist.txt (1k) - a text file of the version history of the PK-Basic

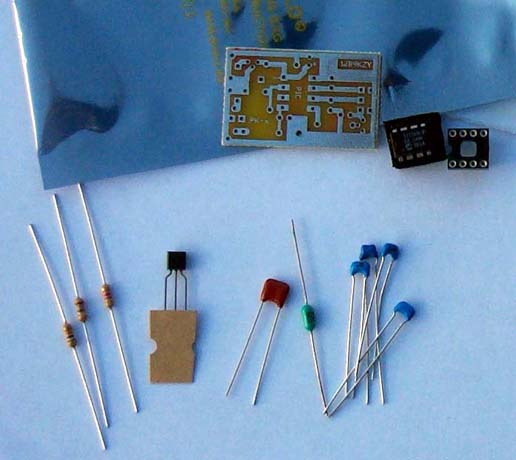

    pkbasica.jpg (29k) - a picture of the PK-Basic kit contents
